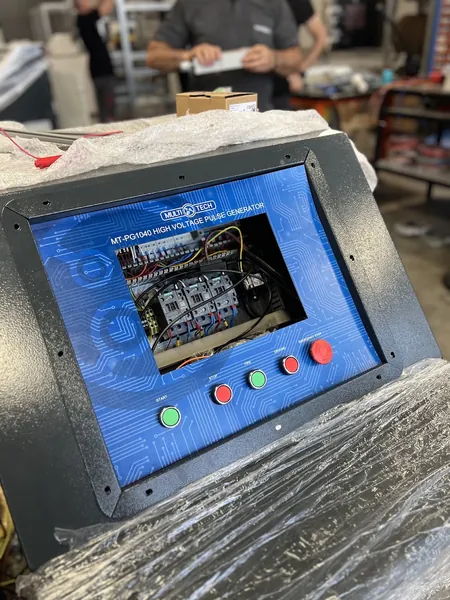

Large-format front panels for CNC, automation and test machines. Display openings, button and screw holes are cut to size, and reverse printing keeps the graphics from wearing off.
We make front panels, labels and membrane keypads from polycarbonate and polyester film for machinery, medical and electronic devices, from a single prototype to series production.

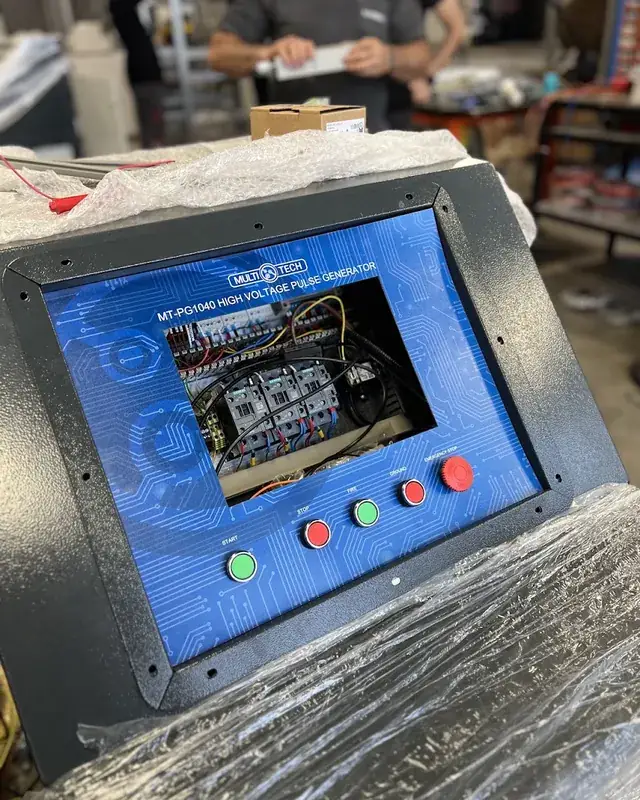

Large-format front panels for CNC, automation and test machines. Display openings, button and screw holes are cut to size, and reverse printing keeps the graphics from wearing off.

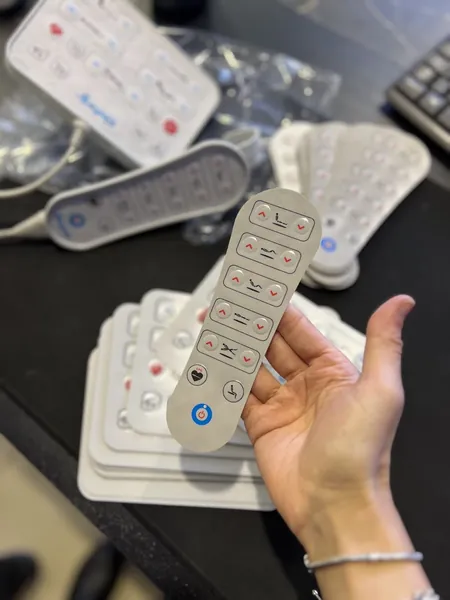

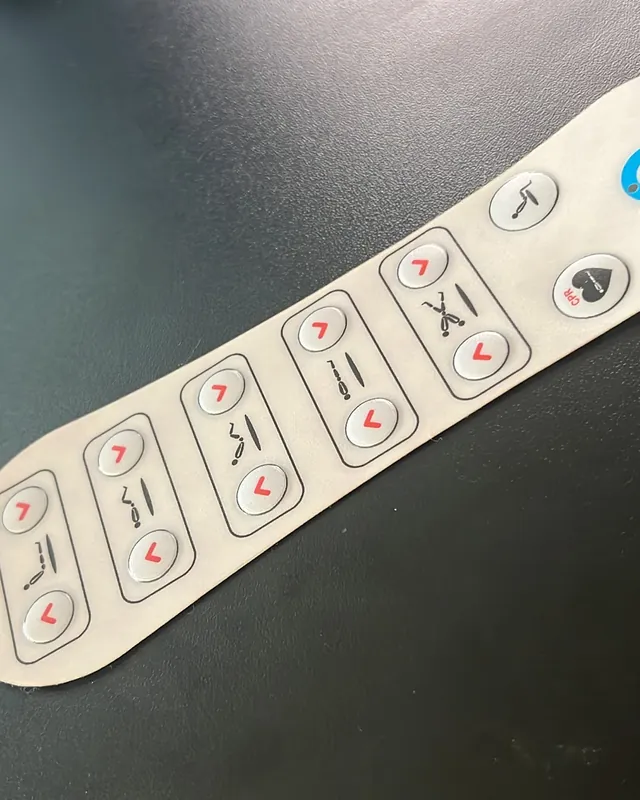

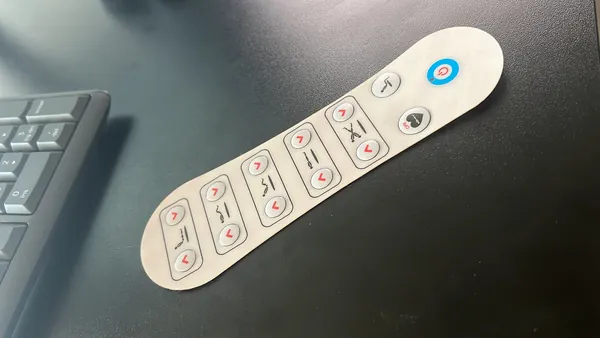

Complete membrane switches with the printed overlay, the circuit layer underneath and a flex tail. Embossed keys and LED windows, from hospital bed controls to industrial devices.

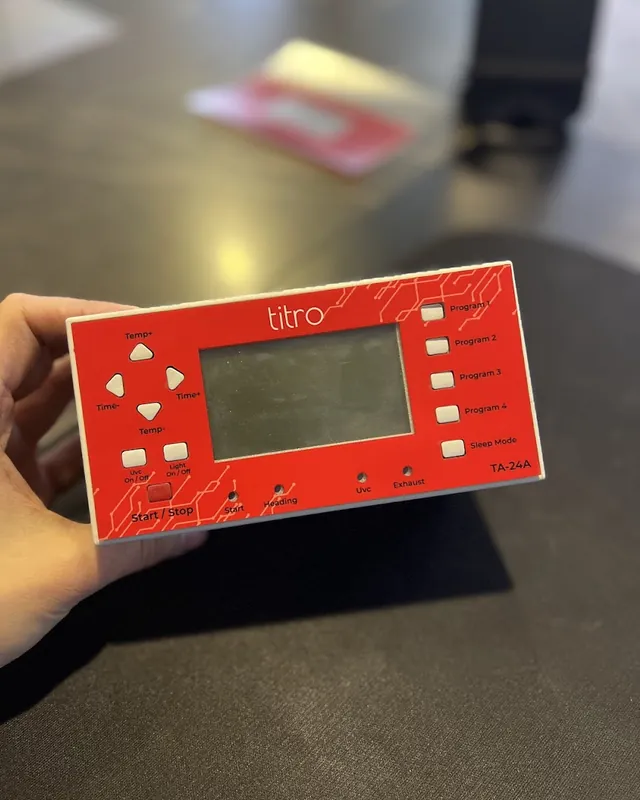

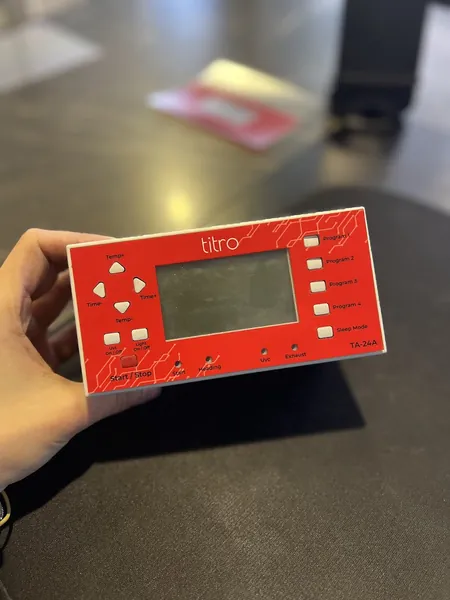

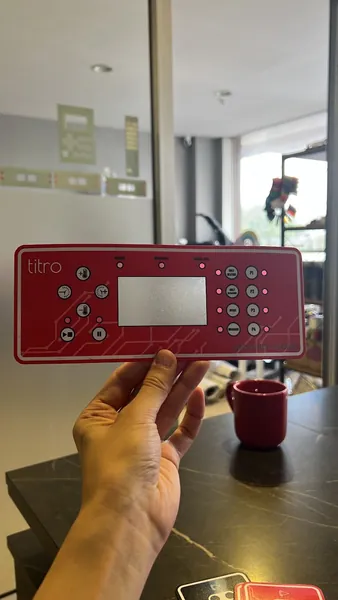

Front panels for electronic devices that combine a clear display window, embossed keys and your brand colours in a single piece.

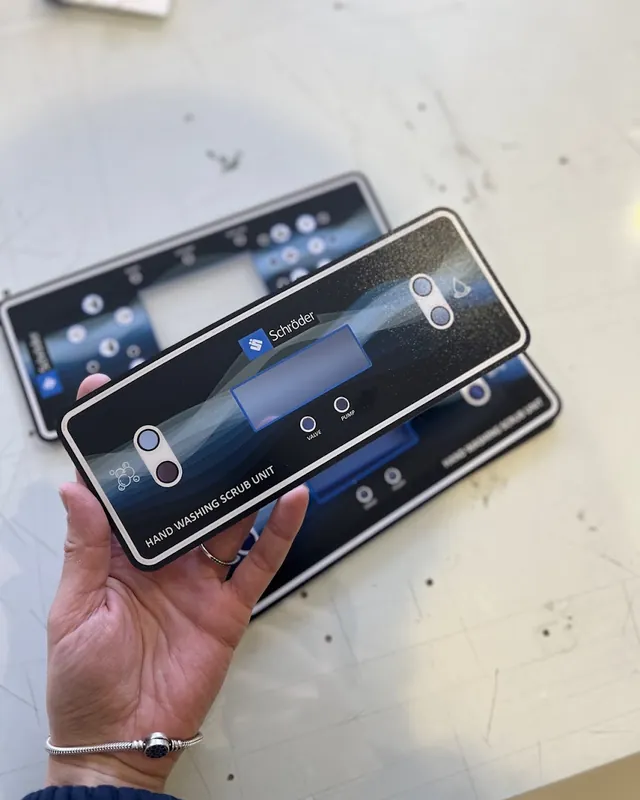

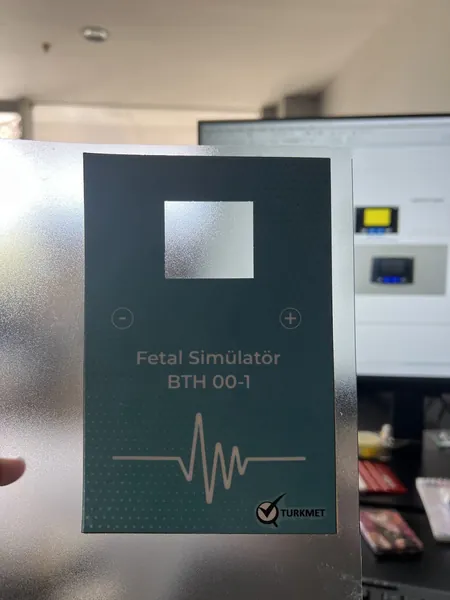

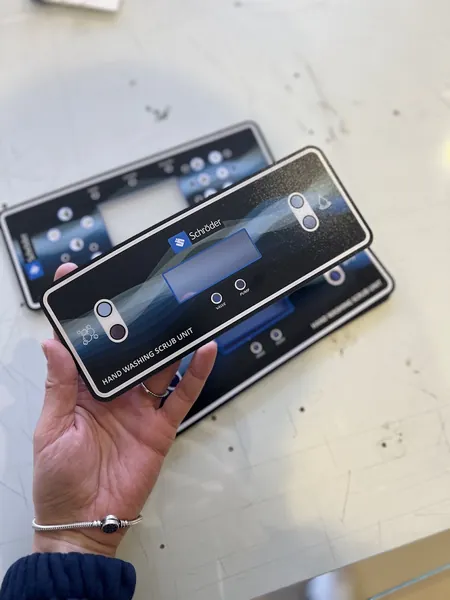

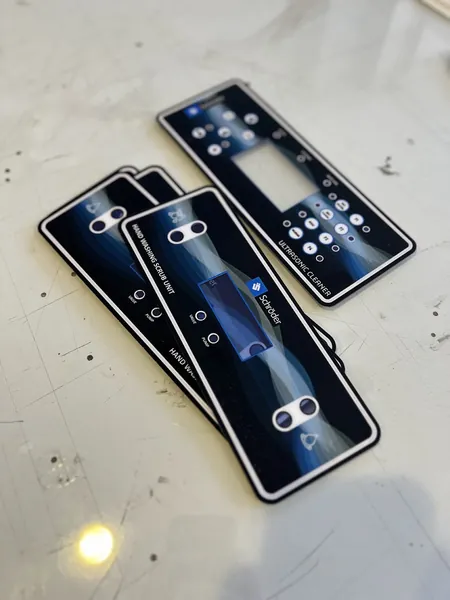

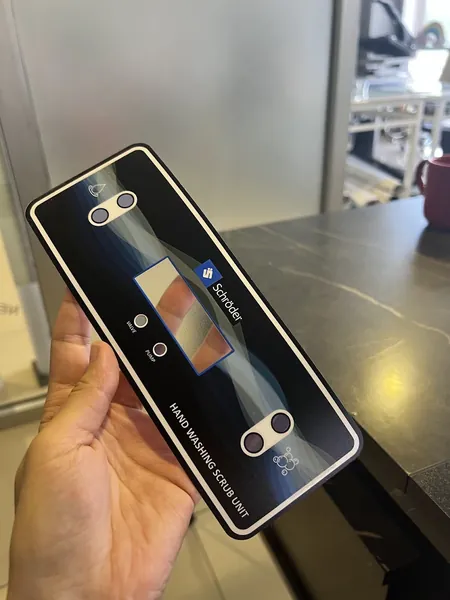

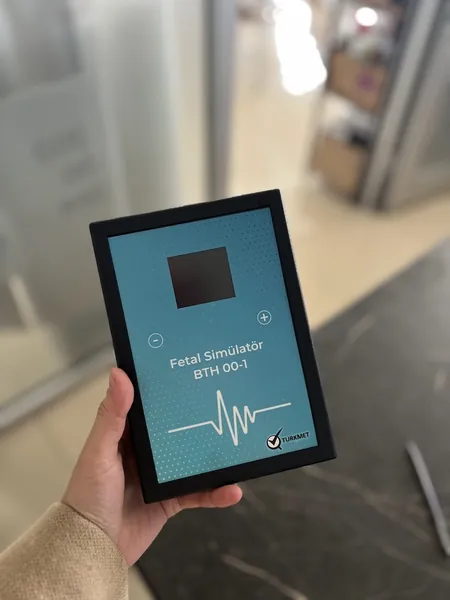

Smooth front panels for medical and laboratory equipment that can be wiped with alcohol-based cleaners. Sensor and display windows are cut to size.

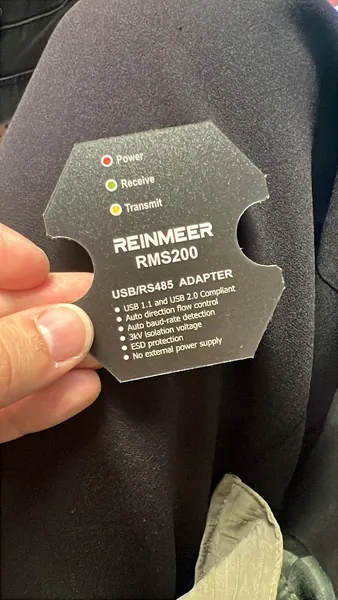

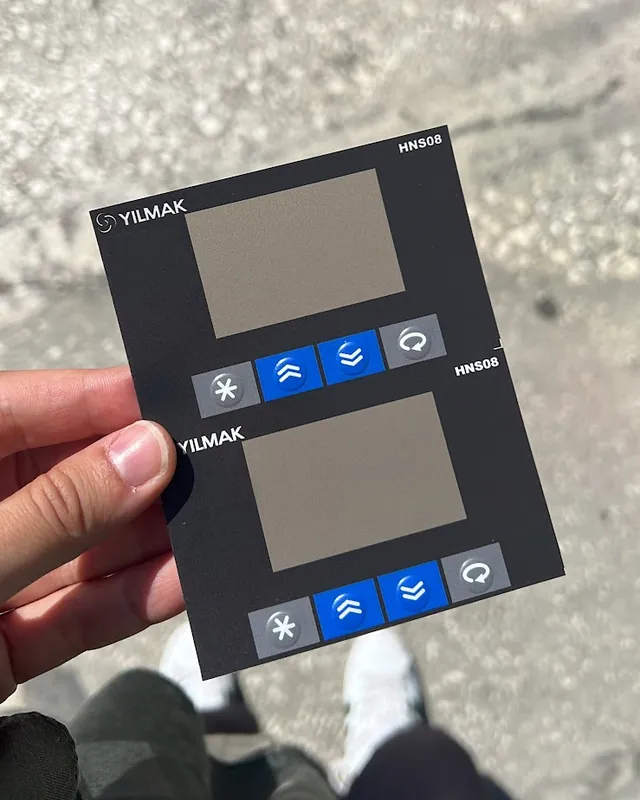

Custom-shaped labels for adapters, controllers and measuring instruments, with LED and indicator windows, dead-front display areas and fine-detail printing.

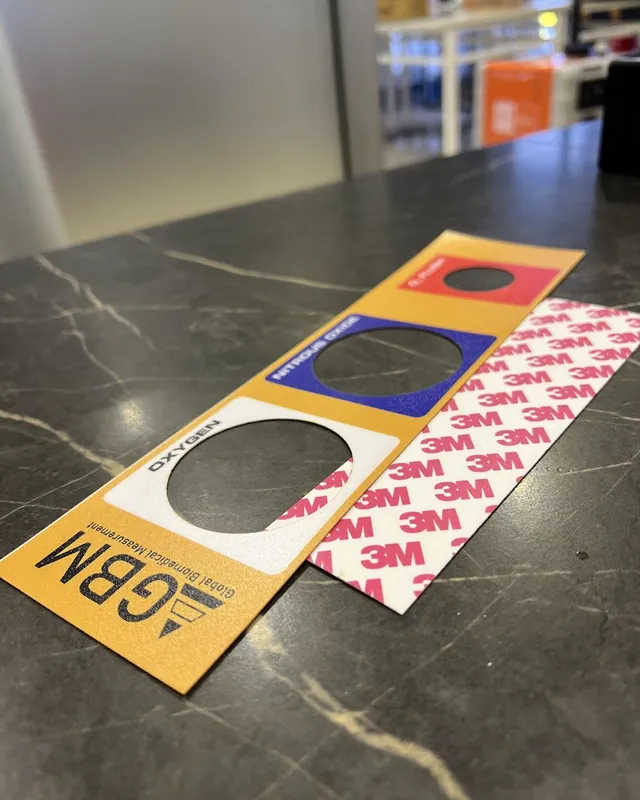

Rating plates, serial number and gas/fluid identification labels with colour-coded areas, round cut-outs and 3M adhesive, ready to apply.

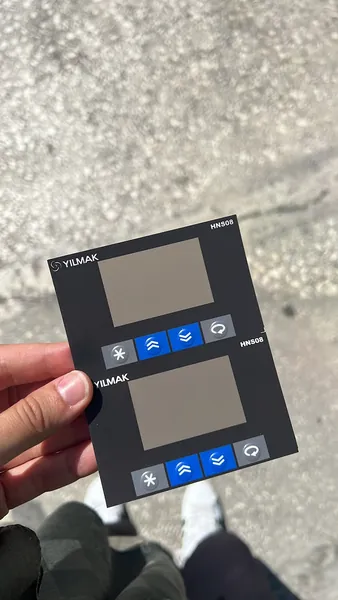

Some of the polycarbonate labels, front panels and membrane keypads we have produced for our customers. All photos were taken in our own workshop.
A polycarbonate label is not a single print but a layered product. We choose every layer together with you, based on where it will be used.
No technical drawing? No problem. We can work from a clear photo or a sample of your current panel, and prepare the design and cutting file ourselves if needed.
The ink is printed as a mirror image on the back of the clear film. The film on top protects the print from abrasion, scratches and chemicals, so the graphics never wear off and the colours do not fade.
Polycarbonate film keeps its shape across a wide temperature range (about -40 °C to +120 °C). It resists UV, moisture, oils and alcohol-based cleaners, and for chemically harsh environments we offer hardcoat polyester.
3M 467MP / 468MP for metal and painted surfaces, 300LSE for low surface energy plastics (PP, PE, powder coat). We listen to your surface and operating conditions and recommend the right adhesive.
Any size and shape, with pillow or rim embossed keys, clear or colour-filtered windows, dead-front display areas, LED windows and Pantone colour matching, so the panel fits your device exactly.
Any device with a control panel can use a polycarbonate label. The industries we work with most:
Machine tools, presses, packaging and filling machines
Control cabinet doors and operator panels
Washing machine, dishwasher, oven and hob panels
Medical device and test equipment interfaces
Switchboards, generators, UPS and inverters
Boiler, thermostat and air conditioning controls
Commercial vehicles, tractors, irrigation and fertigation systems
Floor indicators and car operating panels
Control surfaces for harsh environments
Washable machine control panels
Measuring instruments, test devices and OEM products
Serial number, model and technical data plates
We follow the same steps on every new project, so size, colour and key feel are confirmed before series production.
We collect size, quantity, operating environment and application surface. No artwork? A photo or sample of your current panel is enough.
Together we choose polycarbonate or polyester film, surface texture, thickness and the 3M adhesive series for your conditions.
We prepare a digital proof with sizes and colours. For new projects you can test key feel and windows on a sample before production.
Pantone-matched screen printing for high volumes, UV digital printing for low volumes and prototypes, on the back of the film.
Embossed keys, clear/dead-front windows, and holes and shapes cut by CNC, laser or die.
The adhesive is laminated bubble-free; after size, colour, cut and adhesion checks the labels are packed and shipped.
Can't find your question? Message us on WhatsApp and we will get back to you shortly.
A control or information panel made by printing on the back of polycarbonate or polyester film and applied to the front of a device. It is also called a graphic overlay. Lexan is a polycarbonate brand name, but in Türkiye it is used as the generic name for these labels.
No. The overlay is the printed top layer. A membrane switch is the circuit layers underneath that make electrical contact when a key is pressed. We make both and deliver complete membrane keypads.
Because the print is on the back of the film, the clear film on top protects the ink from abrasion, scratches, chemicals and UV light. The graphics do not wear off and the colours do not fade.
It depends. Screen printing suits high volumes and strict Pantone consistency; UV digital, with no screen cost, suits low volumes, prototypes and gradients. We recommend based on your quantity and design.
Typically 0.125 mm to 0.75 mm, most commonly 0.175 mm and 0.25 mm. For embossed and membrane applications, the thickness is chosen for the key feel you want.
With the right adhesive, most surfaces including metal, painted surfaces, ABS, PC and glass. 3M 467MP for smooth metal, 468MP for rough surfaces and 300LSE for low-energy plastics such as PP/PE. Clean the surface with isopropyl alcohol for best results.
Yes. With the right film, ink and adhesive it withstands sun, humidity and temperature changes. Tell us about outdoor use when you request a quote and we will choose materials accordingly.
Yes. We can work from a sample, a clear photo or a dimensioned sketch of your current panel, and prepare the artwork and cutting drawing if needed.
Screen printing is colour matched to Pantone codes. We provide a digital proof or a sample for approval.
Orders are delivered within 14 working days at most after approval; many jobs are completed sooner depending on quantity and options. We confirm the exact time in our quote.
No. We also produce single labels and prototypes; for low quantities we use UV digital printing with no screen cost.
Width and height (mm), quantity, surface (matte/gloss), options such as embossing, windows or LEDs, the operating environment and your artwork. Accepted formats: .pdf, .ai, .cdr, .eps, .dxf, .jpg, .png.
Our office and production are in İvedik, Yenimahalle, Ankara. Reach us by phone, e-mail or WhatsApp to discuss your project.
İvedikköy Mah. Melih Gökçek Bulv. No:17
Arıkanlar Plaza, Floor 1, No:26
İvedik / Yenimahalle / Ankara, Türkiye
Tell us the product type, size, quantity and options; attach your artwork and send it by e-mail, or open your details as a ready message in WhatsApp.
